Description
Standard Features
- Comes in Log, Birch Log or Glass media
- Viewing Area: 23 ¾” x 29 ¼”
- 26,500 BTU/hr Input –NG
- 26,500 BTU/hr Input –LP
- Electronic Ignition (IPI) (Bayport 36 Log, Bayport 36 Birch Log, & Bayport 36 Glass)
- Standing Pilot Ignition
- Bayport 36 Millivolt only
- Top-Vent Ready (rear-vent convertible)
- High Quality Lifetime Glass
- Fan Kit CFM Blower
- Standard on Bayport 36 Log & Bayport 36 Birch Log
- Optional on Bayport 36 Glass
- Remote Control –Full Function
- Bayport 36 Log, Bayport Birch Log, and Bayport 36 Glass only
- High-Low Regulator
- Engineer-Designed burner system
- Finish Trim Kit
- Certified to ANSI Z21.88 Vented Gas Heater
- Ceramic Glass
Efficiencies
- IPI
-
– ENERGUIDE P.4 NG/LP | 66.61% / 71.09%
-
– Steady State NG/LP | 71% / 75%
-
– AFUE % NG/LP | 70% / 74%
-
- MV
-
– ENERGUIDE P.4 NG/LP | 65.52% / 70.13%
-
– Steady State NG/LP | 71% / 75%
-
– AFUE % NG/LP | 70% / 74%
-
- Efficiencies Glossary:
- – P.4 Efficiency (ENERGUIDE) is an efficiency rating more recognized in Canada to measure annual fireplace efficiency.
- – Steady State Efficiency is a measure of how efficiently your fireplace converts fuel to heat once it is warmed up and operating at a steady temperature.
- – Annual Fuel Utilization Efficiency (AFUE) is a measurement of the fireplace’s ability to convert fuel to heat over a longer period of time including the cycling on and off time period.
Standard Design Features
- Enamel Firebox Refractory
- Standard on Bayport 36 Glass only
- Ember Bed Light Kit
- Standard on Bayport 36 Log
- Accent Light Kit
- Standard on Bayport 36 Glass
- Screen Front
- For options and pictures, look at the Bayport Brochure under the Resources tab.
Optional Features
- Brick refractory Refractory
- Bayport 36 Log, Bayport 36 Birch Log, and Bayport 36 Millivolt only
- Masonry Refractory
- Bayport 36 Log, Bayport 36 Birch Log and Bayport 36 Millivolt only
- Black Glass Refractory
- Bayport 36 Log, Bayport 36 Birch and Bayport 36 Millivolt only

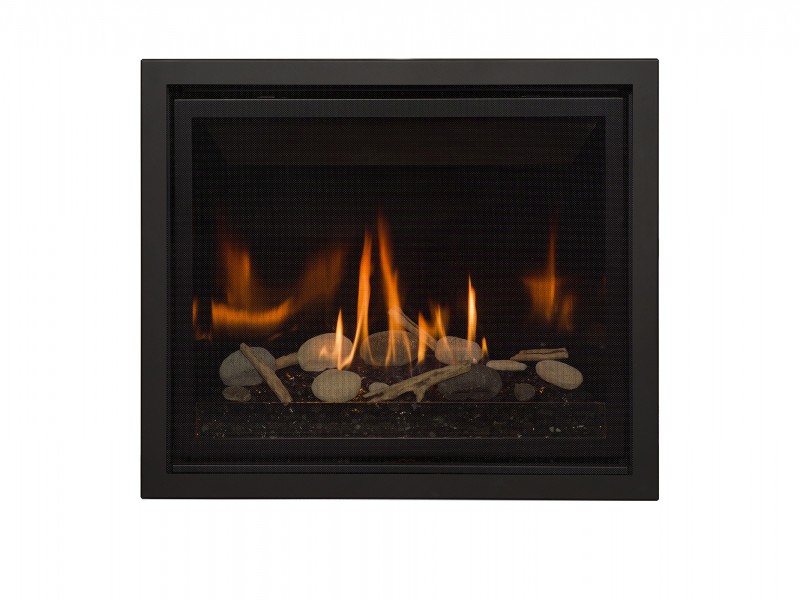

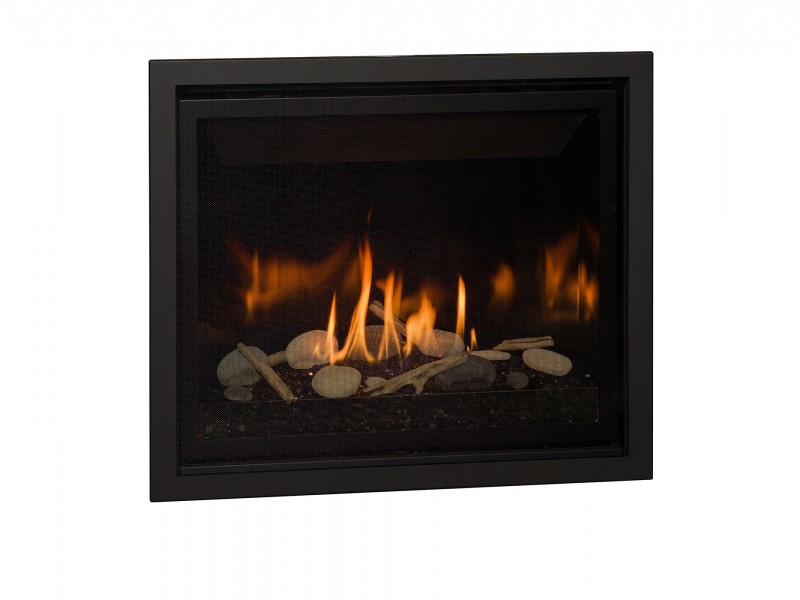

- Driftwood/Rock Accent Media
Required Design Features

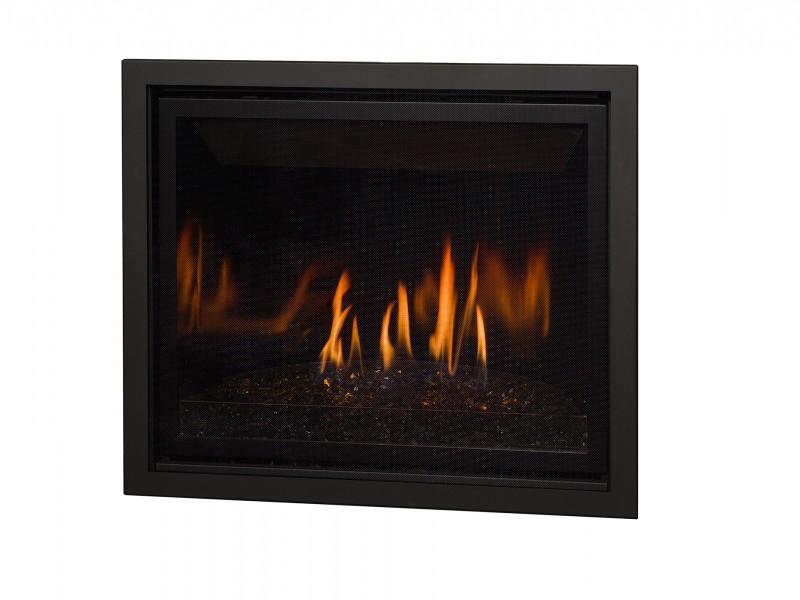

- Glass Media
- Required with Bayport 36 Glass
- For options and pictures, look at the Bayport Brochure under the Resources tab.
